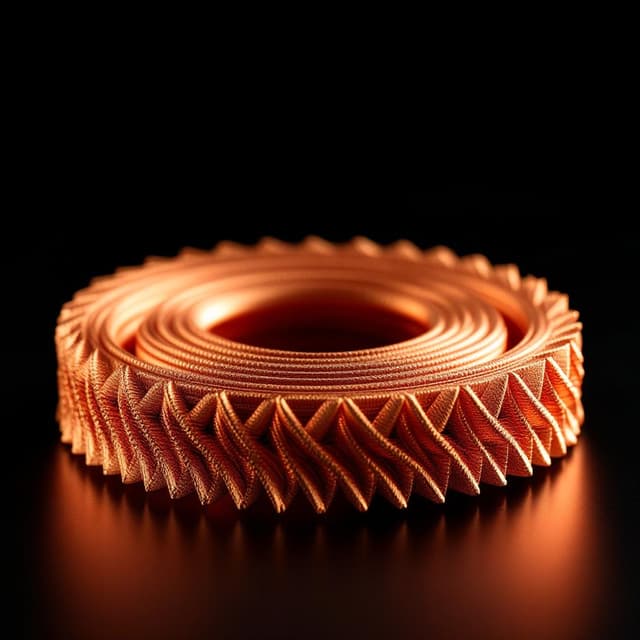

Cu-CP (Commercially Pure Copper)
metalcopper alloy — commercially pure
Pure CopperCP CopperCu 99.9Oxygen-Free Copper AMC10100 AM
Composition — ASTM B170 / EN 13599 — Cu-ETP or Cu-OFE equivalent (>99.9 wt% Cu)
| Element | Min % | Max % | Notes |
|---|---|---|---|
| Cu | 99.90 | — | balance — >99.9 wt% minimum; purity drives electrical and thermal conductivity |
| O | — | 0.040 | Oxygen impurity forms Cu₂O inclusions, reducing conductivity and promoting porosity; strict atmosphere control mandatory |
| Fe | — | 0.050 | Iron impurity reduces electrical conductivity |
| Pb | — | 0.005 | Lead trace — minimal permitted |
Mechanical & thermal properties — 2 conditions
| Property | LPBF as-built (XY) — green laser | LPBF as-built (Z) — green laser |
|---|---|---|
| Elastic modulus | 110 GPa | 108 GPa |
| Yield strength (0.2%) | 175–230 MPa | 150–200 MPa |
| Ultimate tensile strength | 200–250 MPa | 175–220 MPa |
| Elongation at break | 25.0–40.0 % | 18.0–32.0 % |
| Hardness (HV) | 65–85 HV | — |
| Density | 8.92 g/cm³ | 8.90 g/cm³ |
| Thermal conductivity | 360.0–400.0 W/m·K | 350.0–390.0 W/m·K |
Values shown as min–max where a spread is reported, otherwise as typical ± unit. Ranges reflect inter-source variation, not single-sample scatter. All values are for AM-processed specimens unless noted.
Engineering considerations
- Laser selection: Green laser (515–532 nm) is strongly preferred. Copper absorptivity at 532 nm is ~40% vs ~5% at 1064 nm. If only IR is available, use ≥500 W with carefully optimised scan speed and hatch — expect higher porosity and require CT verification before pressure testing.
- Electrical conductivity vs porosity: Even small amounts of porosity (<1%) can degrade electrical conductivity disproportionately. Verify relative density >99% by Archimedes method or CT before deploying in electrical applications.
- No strength upgrade pathway: Cu-CP cannot be precipitation-hardened. If the application requires both high conductivity AND strength >300 MPa, specify CuCrZr (aged: ~400–500 MPa, ~320 W/m·K) or GRCop-84 (~310–380 MPa, ~323 W/m·K) instead.
- Atmosphere control: Use high-purity argon (<10 ppm O₂, <10 ppm H₂O). Copper oxidises readily at LPBF processing temperatures; Cu₂O inclusions are detrimental to both thermal and electrical conductivity.
- Thermal distortion: High thermal conductivity means rapid heat dissipation, but also that residual stresses from steep thermal gradients can be significant. Use a preheat plate (≥100°C) and consider a low-stress scan strategy (island/chessboard).
- Pressure testing: For cooling channels, proof-pressure test at 1.5× operating pressure using inert gas (He or N₂) with leak detection. Helium leak test is preferred for refrigerant circuits.
- Design wall thickness: Minimum recommended wall for conformal cooling channels: 0.4 mm (confirmed at >99% density with green laser). Thinner walls possible with parameter optimisation but require individual verification.
Advantages
- Highest thermal conductivity of any AM metal (~380–400 W/m·K at room temperature)
- Electrical conductivity ~95–100% IACS as-built with green laser — approaches wrought OFHC copper
- Excellent ductility (>25% elongation) — damage-tolerant in thermal cycling applications
- LPBF enables complex internal cooling channel geometries (conformal cooling, manifold lattices) impossible to fabricate conventionally
- No precipitation hardening needed — as-built is the final functional condition
- Well-understood corrosion behaviour — excellent in deionised water, moderate in seawater
Limitations
- Very low strength (YS ~175–200 MPa) — not a structural material; always design with a stiffer structural shell if loads are present
- Requires green laser (515 nm) LPBF for consistent high density; green-laser systems cost ~2–3× more than standard IR systems
- High-power IR (>500 W) can process Cu-CP but shows higher spatter, porosity, and parameter sensitivity vs green laser
- Strict atmosphere control required (<50 ppm O₂); oxygen contamination forms Cu₂O inclusions that degrade both conductivity and mechanical properties
- Poor wear resistance — not suitable for sliding contact or tribological applications (use CuSn10 or CuCrZr instead)
- No heat treatment pathway to increase strength — if higher strength is needed, switch to CuCrZr or GRCop-84
- Powder cost higher than 316L; Cu powder requires careful handling (moisture absorption, oxidation risk during storage)
- Machining Cu is 'gummy' — use sharp tooling, flood coolant, avoid work hardening
Typical applications
EV battery cooling plates with complex internal channels (LPBF enables geometries impossible in stamped/brazed construction)Rocket engine regenerative cooling chambers (where ultra-high thermal conductivity outweighs low strength)RF waveguides and antenna structures requiring high electrical conductivityHeat sinks and cold plates for high-power electronics and power modulesInduction heating coils with complex geometriesBusbars and electrical connectors for high-current applicationsMicrowave and RF filter housings
Industries
automotiveaerospaceelectronicsenergyindustrial
