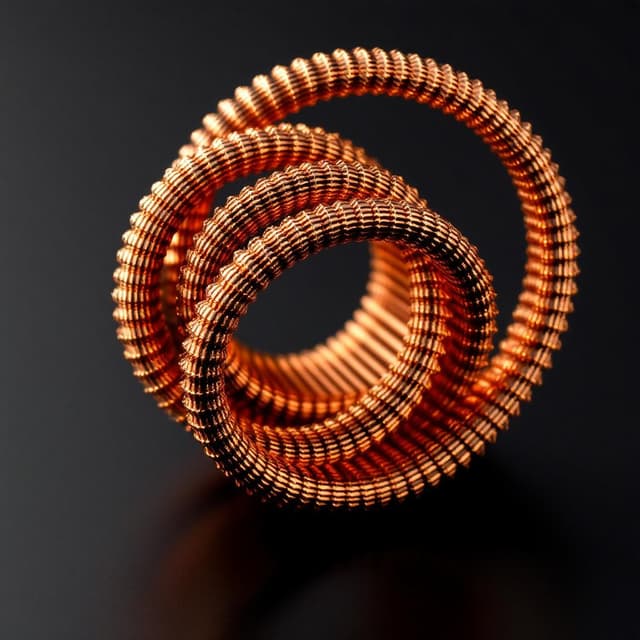

CuSn10 (Bronze)
metalcopper alloy — tin bronze
Cu-10SnTin BronzeCuSn10 AMBronze AMC90700 AM equivalentPhosphor Bronze AM
Composition — EN 1982 CC480K / ASTM B505 C90700 equivalent — CuSn10 (10 wt% Sn nominal)
| Element | Min % | Max % | Notes |
|---|---|---|---|
| Cu | — | — | balance — copper matrix; provides electrical/thermal conductivity and corrosion resistance |
| Sn | 9.00 | 11.000 | 10 wt% tin — primary alloying element; improves corrosion resistance, hardness, and wear performance at significant cost to conductivity |
| P | — | 0.400 | Phosphorus — deoxidiser and minor strengthener in phosphor bronze variants; improves fluidity in sintering |
| Zn | — | 0.050 | Zinc trace impurity |
| Pb | — | 0.050 | Lead trace — minimised in AM powder (PbF safety and regulatory reasons) |
| Fe | — | 0.100 | Iron impurity |
Mechanical & thermal properties — 2 conditions
| Property | Binder Jetting sintered (isotropic) | LPBF as-built (XY) |
|---|---|---|
| Elastic modulus | 95–108 GPa | 93–105 GPa |
| Yield strength (0.2%) | 140–190 MPa | 175–225 MPa |
| Ultimate tensile strength | 250–310 MPa | 280–350 MPa |
| Elongation at break | 12.0–25.0 % | 8.0–18.0 % |
| Hardness (HV) | 80–105 HV | 95–125 HV |
| Density | 8.70–8.87 g/cm³ | 8.65–8.85 g/cm³ |
| Thermal conductivity | 45.0–60.0 W/m·K | — |
Values shown as min–max where a spread is reported, otherwise as typical ± unit. Ranges reflect inter-source variation, not single-sample scatter. All values are for AM-processed specimens unless noted.
Engineering considerations
- Process route selection: Binder Jetting is preferred for dental, jewellery, and bearing applications where isotropy, surface finish, and near-cast properties are required. LPBF is preferred where higher strength is needed and some anisotropy is acceptable.
- Shrinkage compensation (BJ): Programme a linear scale factor of ~1.18–1.22 (18–22% oversize) in the print file to account for sintering shrinkage. Verify the exact shrinkage factor for your powder + sintering cycle combination with test coupons before printing production parts.
- Sintering atmosphere: Use pure H₂ or 95% N₂ / 5% H₂ reducing atmosphere. Oxidising or inert atmospheres alone will not reduce surface oxides on the green body and will impair sintering densification.
- Bearing design: For oil-impregnated bushings, specify a porosity of 15–20% in the green body and use partial sintering (>90% density, not >97%) to retain interconnected porosity for oil retention. Full sintering closes pores.
- Dental application: BJ CuSn10 is now ISO 22674 Type 3–4 compatible for framework alloys. Verify biocompatibility data from the powder supplier for each specific application — regulatory approval pathway varies by country.
- Corrosion in seawater: CuSn10 forms a stable tin oxide/patina layer in seawater. Avoid galvanic coupling with aluminium (nobility difference); stainless steel is an acceptable galvanic partner with appropriate isolation.
Advantages
- Binder Jetting + sintering produces isotropic properties matching sand-cast CuSn10 — direct replacement for lost-wax or sand castings
- Excellent corrosion resistance in seawater and saline environments — no cathodic protection needed (unlike steel)
- Good sliding wear behaviour — compatible with steel shafts in lubricated bearing applications
- BJ-sintered parts can be manufactured without support structures in most geometries — cost-effective for complex shapes
- Familiar material in dental labs — smooth transition from traditional casting to BJ AM workflow
- Lower cost than Cu-CP or CuCrZr LPBF when using Binder Jetting — BJ machines are generally lower capex than green-laser LPBF
Limitations
- Low thermal and electrical conductivity (vs pure copper or CuCrZr) — not a thermal or electrical management material
- Binder Jetting sintering introduces ~15–20% linear shrinkage — dimensional compensation required; tolerances typically ±0.3–0.5% after sintering
- LPBF processing window is narrower than BJ — Sn volatility at high laser power can cause composition drift and balling
- Not suitable for elevated-temperature applications (>250°C) — Sn reduces melting point and high-temperature strength
- Lower strength than stainless steels or titanium — not a structural alloy for high-load applications
- Sintering atmosphere control is critical (H₂/N₂ or pure H₂) — oxide formation in insufficient reducing atmosphere degrades properties
Typical applications
Dental prosthetics and frameworks (BJ-sintered replaces lost-wax casting in dental labs)Bearings and bushings — sliding contacts, oil-impregnated bush bearingsMarine hardware: fittings, valves, pump components requiring seawater corrosion resistanceLubricated sliding contacts and wear platesArt, sculpture, jewellery, and architectural decorative elementsGear blanks and worm gears for low-load applicationsHydraulic manifolds and valve bodies for corrosive media
Industries
dentalindustrialoil-gasconsumerarchitecture
Compatible AM processes (2)
